Strovolt Portable Precision Laser Engraving Machine

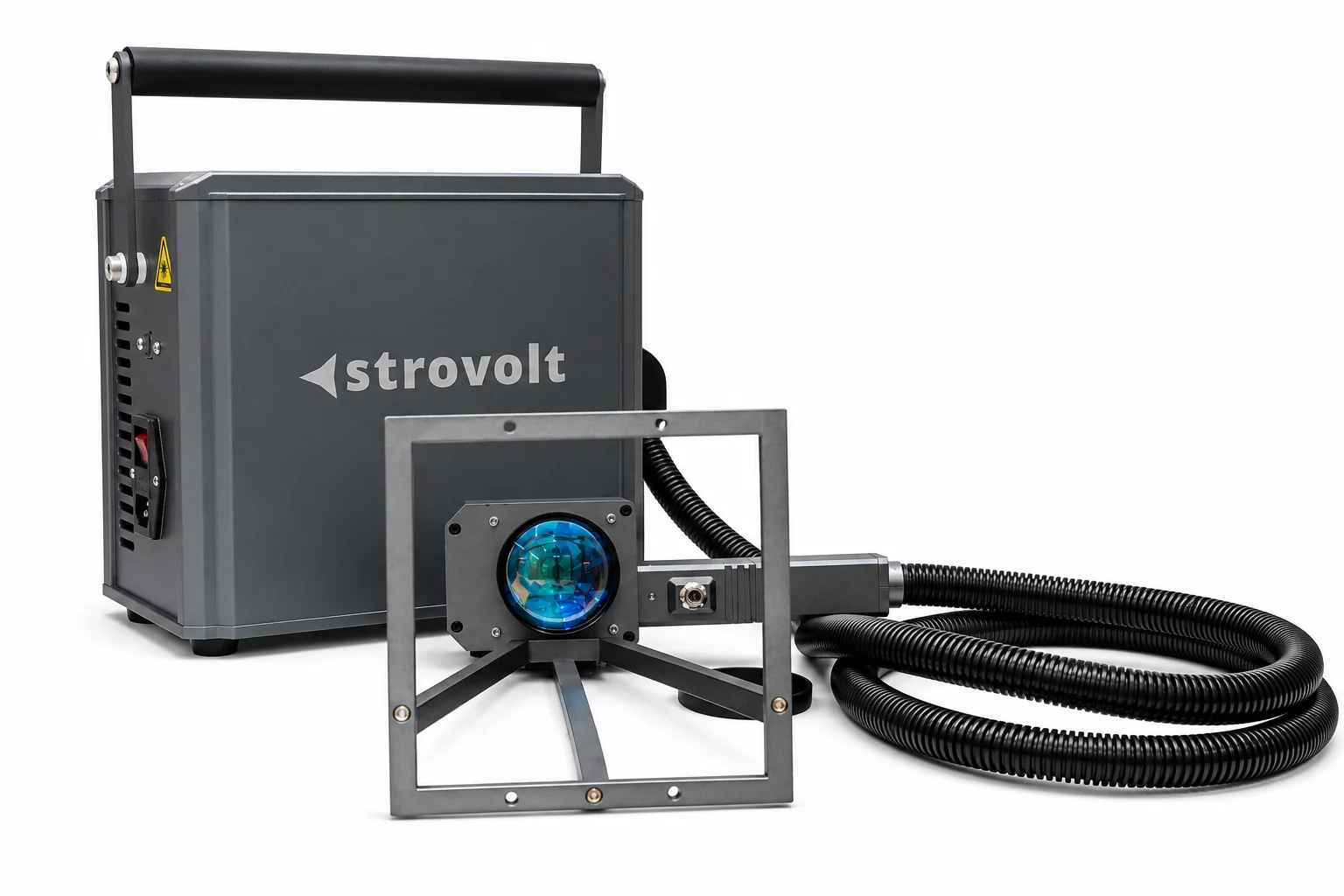

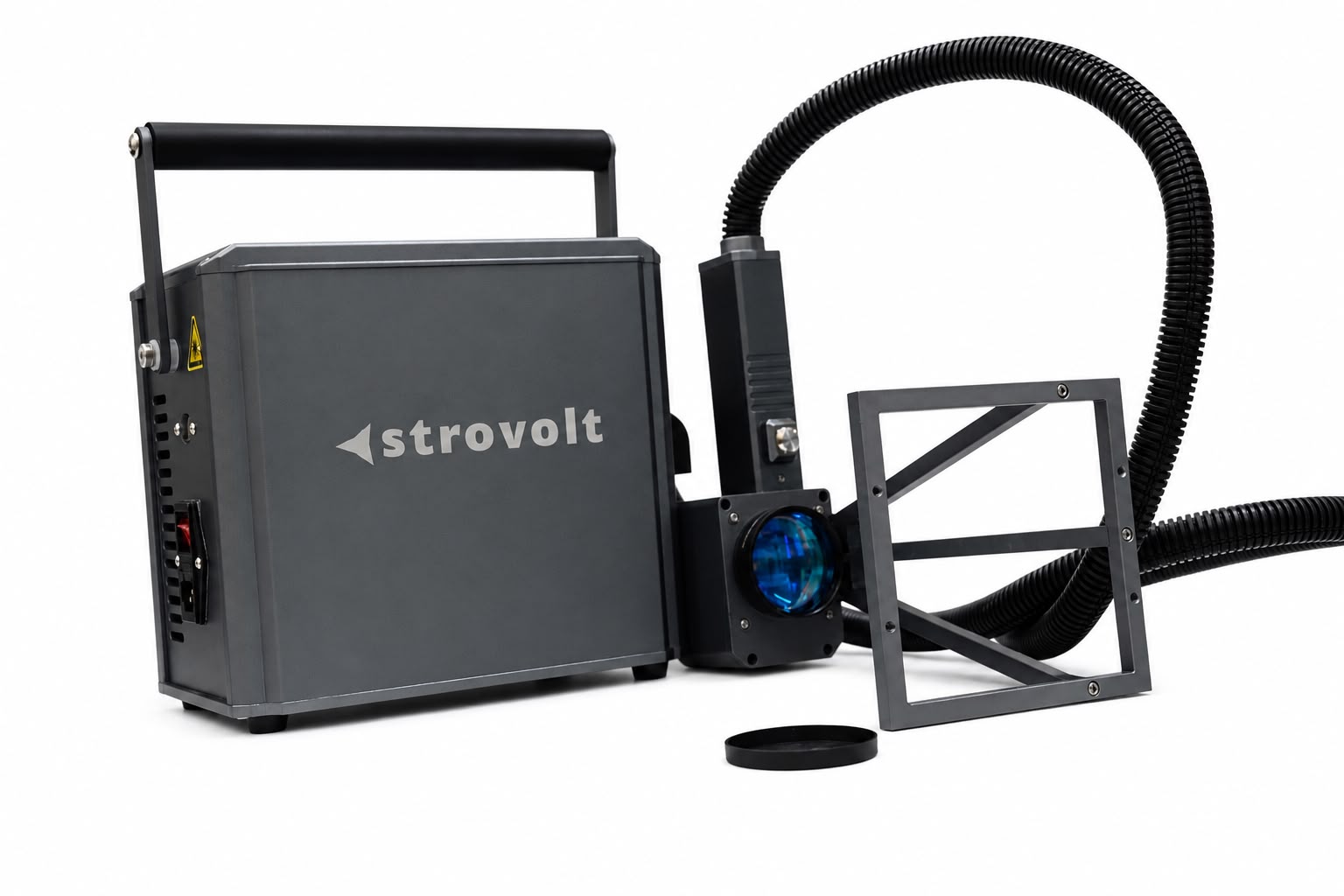

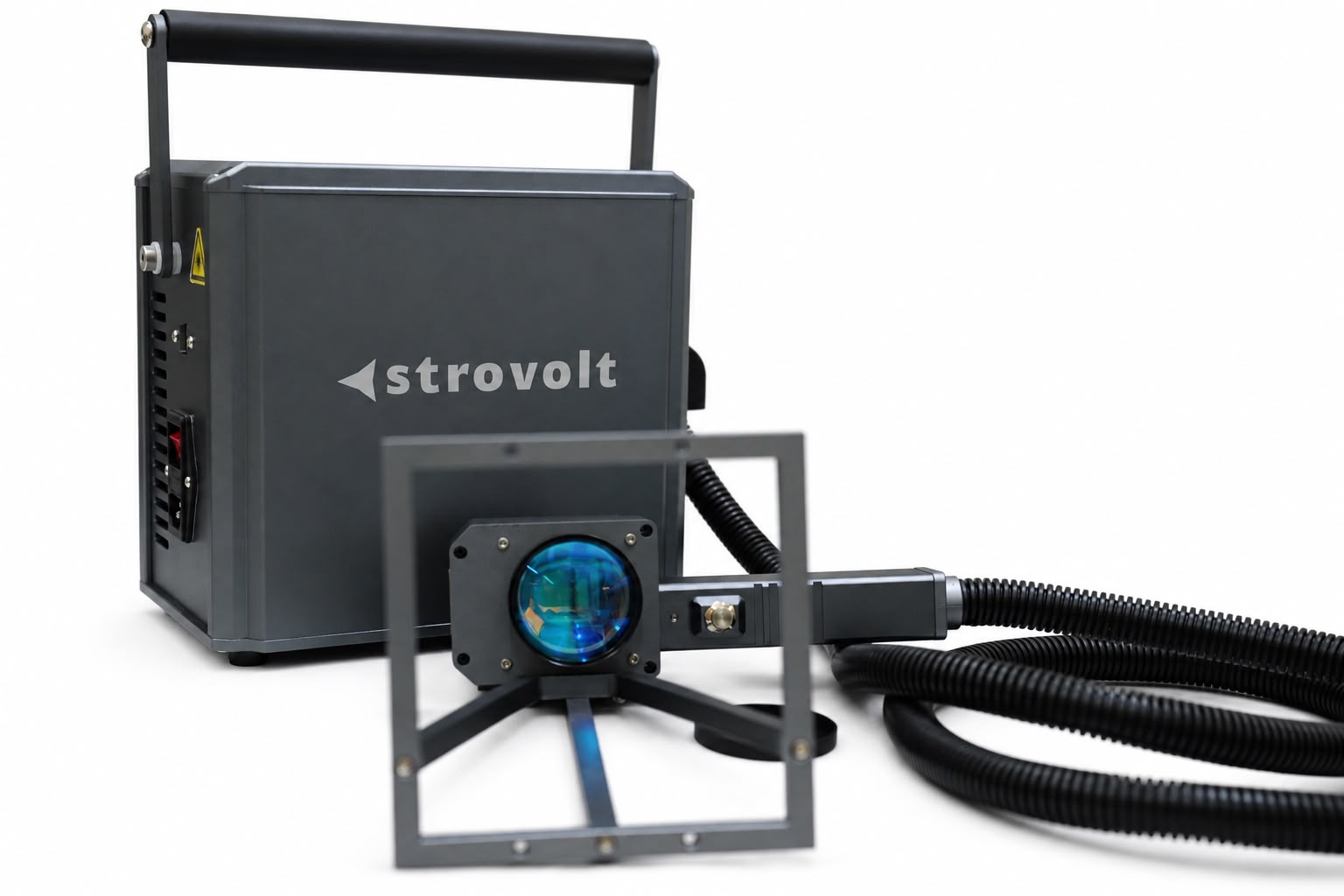

The STROVOLT STROLS-35218 is a complete 30 W fiber laser marking station weighing just 10 kg, with a handheld galvo head of only 1.25 kg. Instead of bringing the part to a bench machine, the head goes to the part — large fabrications, installed equipment and heavy components can be marked in place, on any alignment. A marking stand is included for bench-top work.

The Q-switched source delivers high-peak-power pulses of 110–140 ns at 40–62.5 kHz, marking at 12,000 mm/s and above with beam quality M² < 1.5. Minimum line width is 0.017 mm with ±0.01 mm repeatability over a 110 × 110 mm field (150 × 150 mm optional) — fine enough for micro text and small data-matrix codes.

Everything runs from the built-in touch screen — no external computer — with a multi-language interface including English and Arabic, reading BMP, DXF, PLT, JPEG and HPGL files directly. The machine is air cooled from a standard 220 V supply and draws 500 W or less.

Every laser source is individually tested before dispatch. The package includes the marking stand, professional laser protective glasses, user manual in hard and soft copy, and training by professional engineers. 12-month warranty on the laser source and the complete machine.
