STROVOLT WT20 Thoriated Tungsten Electrode 2.4mm red tip pack of 10 for TIG welding
Strovolt Tungsten Electrodes

STROVOLT WT20 Tungsten Electrode 2% Thoriated Red Tip 2.4 x 175 mm (Pack of 10)

SKUSTROWT2024175
Part NumberSTV-WT20-24175
ConditionNew
BrandStrovolt

Buy this product in Saudi Arabia

Available now at our authorised KSA distributor with fast delivery to Khobar, Dammam, Riyadh & GCC.

View on West Velocity

For pricing, stock availability, bulk orders or technical specifications, contact West Velocity directly.

The STROVOLT WT20 tungsten electrode is a 2% thoriated electrode for DC TIG (GTAW) welding. It starts the arc easily, holds a stable arc on DC electrode negative, and carries more current than pure tungsten of the same diameter. The ground point keeps its shape, which gives a focused arc and a narrow, controlled weld bead.

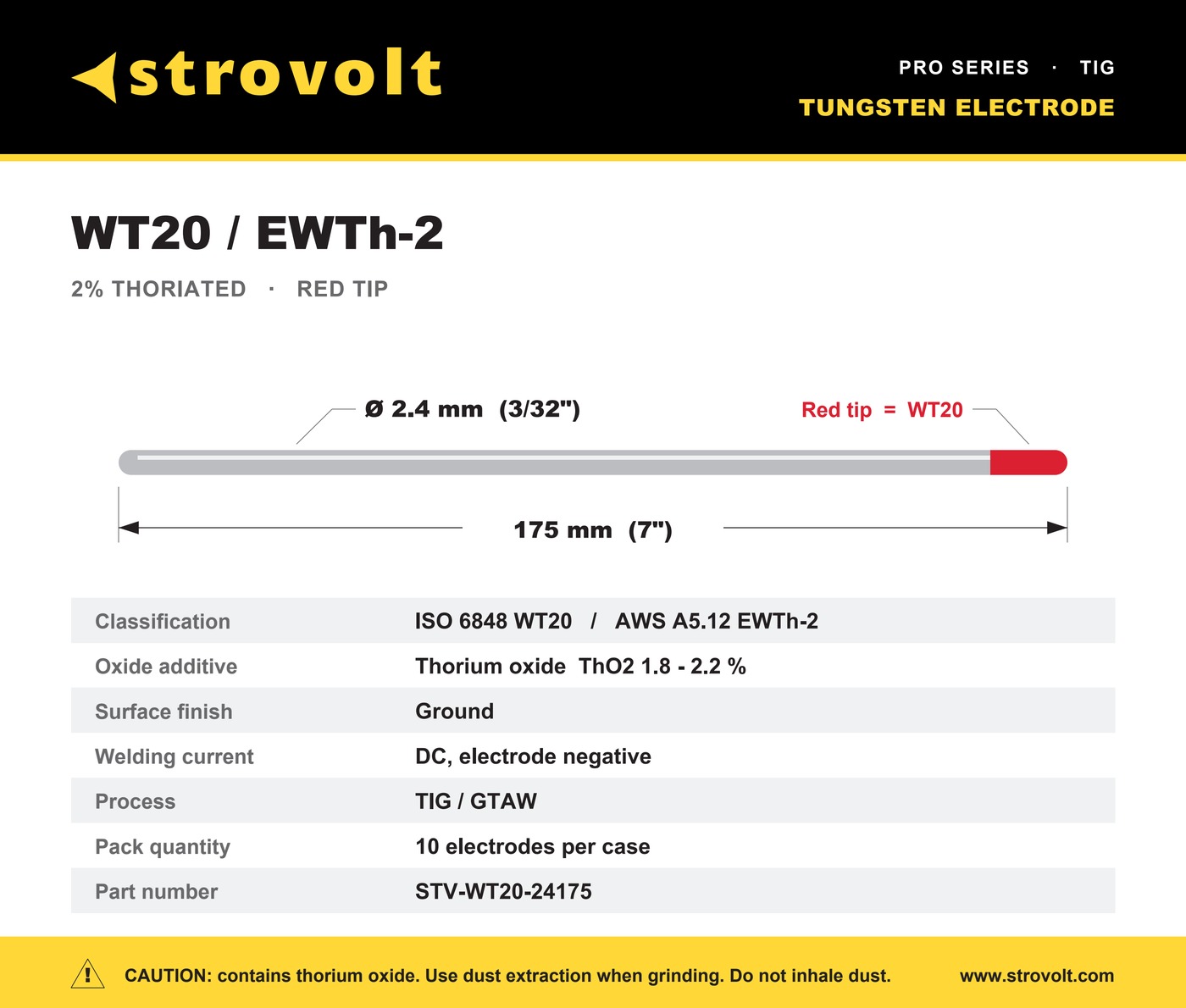

Each electrode is 2.4 mm in diameter and 175 mm long (3/32" x 7") with a ground finish. The grade is classified WT20 to ISO 6848 and EWTh-2 to AWS A5.12, with 1.8 - 2.2 % thorium oxide, and is identified by the red tip.

Use it for carbon and low-alloy steel, stainless steel, nickel alloys, titanium and copper alloys. As a guide, the 2.4 mm size is used at about 150 to 250 A on DC electrode negative.

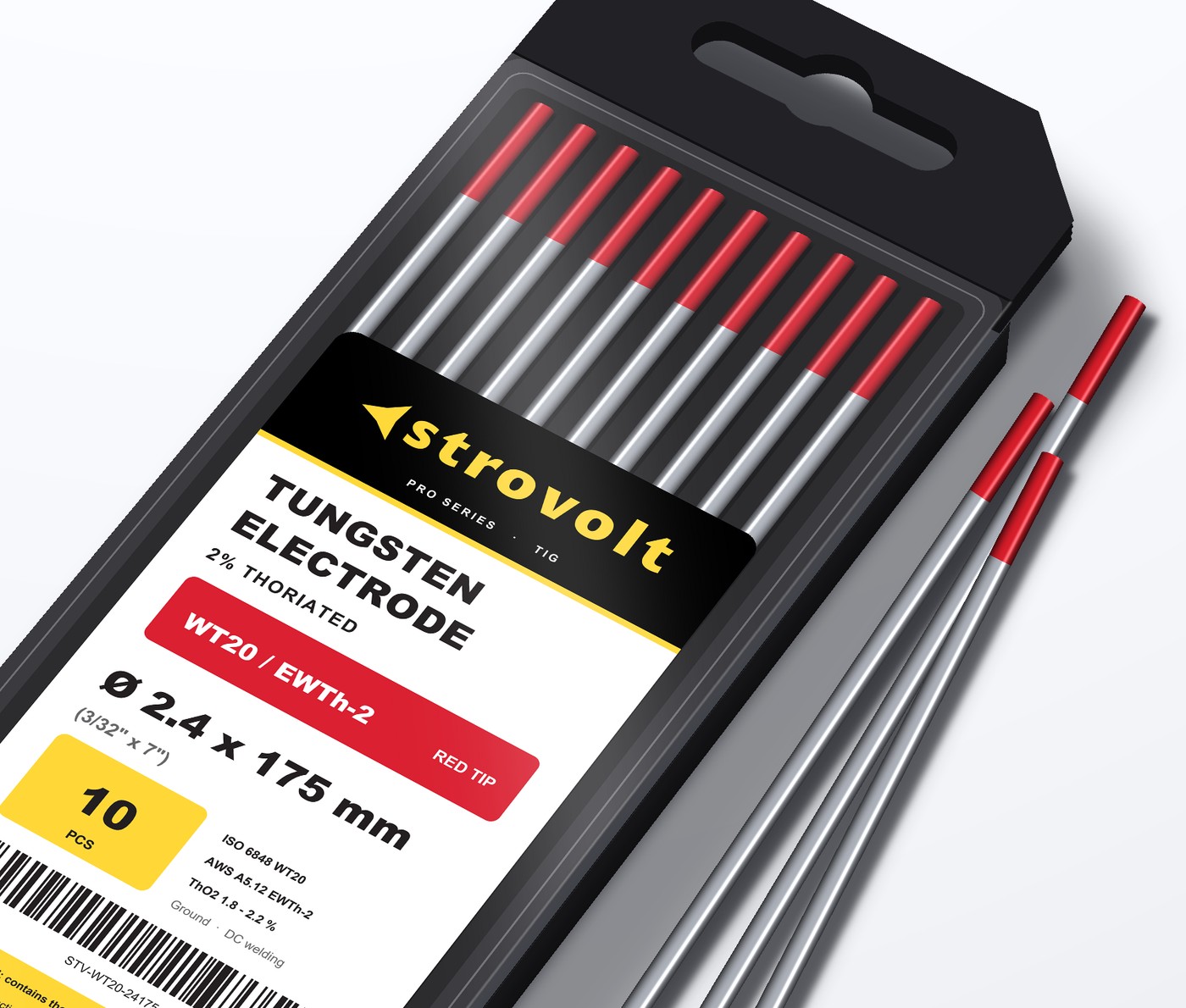

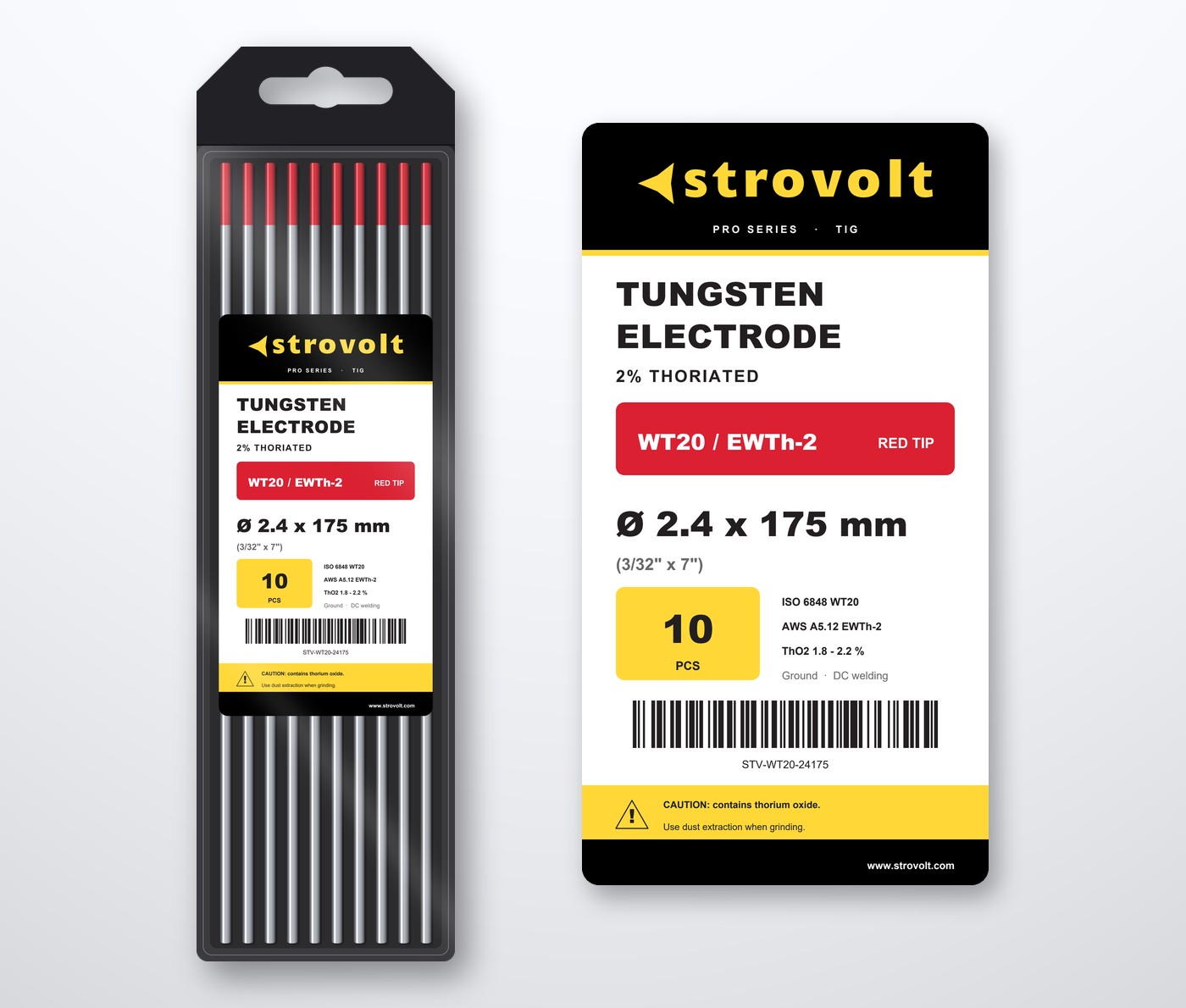

The electrodes are supplied in a hang-tab case of 10 pieces with a clear lid, which keeps them clean and straight and leaves the colour code visible.

Safety: WT20 contains thorium oxide. Use dust extraction when grinding the tip and do not inhale the dust.

Product Information

SKUSTROWT2024175
CategoryTungsten Electrodes
BrandStrovolt
Part NumberSTV-WT20-24175
MOQ1

Specifications

Classification (ISO 6848) WT20
Classification (AWS A5.12) EWTh-2
Colour Code Red tip
Diameter 2.4 mm (3/32")
Length 175 mm (7")
Oxide Additive Thorium oxide (ThO2) 1.8 - 2.2 %
Base Material Tungsten
Surface Finish Ground
Welding Current DC (electrode negative)
Typical Current Range 150 - 250 A DCEN (guide value)
Welding Process TIG / GTAW
Pack Quantity 10 electrodes per case
Packaging Hang-tab plastic case with clear lid
Part Number STV-WT20-24175
SKU STROWT2024175

Key Features

Engineered features of this Strovolt product

Easy Arc Starting
2% thoriated tungsten ignites readily and re-strikes reliably, also at low current.
Stable DC Arc
Holds a steady, focused arc on DC electrode negative for controlled penetration and a narrow weld bead.
High Current Capacity
Carries more current than pure tungsten of the same diameter, with a tip that keeps its ground point longer.
Ground Finish
Ground surface gives good contact in the collet and consistent current transfer.
Colour Coded to ISO 6848
Red tip identifies the WT20 grade at a glance, so electrodes are not mixed up in the workshop.
Protective Case of 10
Hang-tab case with clear lid keeps the electrodes clean and straight, and the grade stays visible.

Product Applications

Industries and use-cases this product is built for

Carbon & Low-Alloy Steel
DC TIG welding of structural and pressure parts.
Stainless Steel
Pipe, tube, tank and sheet fabrication.
Nickel Alloys
DC TIG welding of nickel and nickel-alloy components.
Titanium
DC TIG welding of titanium and titanium alloys.
Copper Alloys
DC TIG welding of copper and copper-alloy parts.
Pipe & Fabrication Workshops
General DC TIG work in fabrication, maintenance and repair.

Product QR Code

Scan with any phone camera to open this product page — download or share the QR below

STROVOLT
STROVOLT WT20 Tungsten Electrode 2% Thoriated Red Tip 2.4 x 175 mm (P…
Scan → opens product page
SKUSTROWT2024175
Part No.STV-WT20-24175
EAN-136285857614219

Scan the QR code with any phone camera to instantly open this product page.

Frequently Asked Questions

Common questions about this product

What is a WT20 tungsten electrode used for?
WT20 (AWS EWTh-2) is a 2% thoriated tungsten electrode for DC TIG welding of carbon steel, stainless steel, nickel alloys, titanium and copper alloys. It is not the usual choice for AC welding of aluminium.
What does the red tip mean?
Red is the ISO 6848 colour code for WT20, tungsten with about 2% thorium oxide.
What current can a 2.4 mm WT20 electrode carry?
As a guide, a 2.4 mm (3/32") thoriated electrode is used at about 150 to 250 A on DC electrode negative. The right value depends on the torch, the shielding gas and the joint.
Is thoriated tungsten safe to use?
WT20 contains thorium oxide, which is slightly radioactive. The main risk is dust from grinding the tip. Use dust extraction when grinding, do not inhale the dust, and dispose of grinding dust according to local rules.
How many electrodes are in one pack?
Each case holds 10 electrodes, 2.4 mm diameter and 175 mm long.
